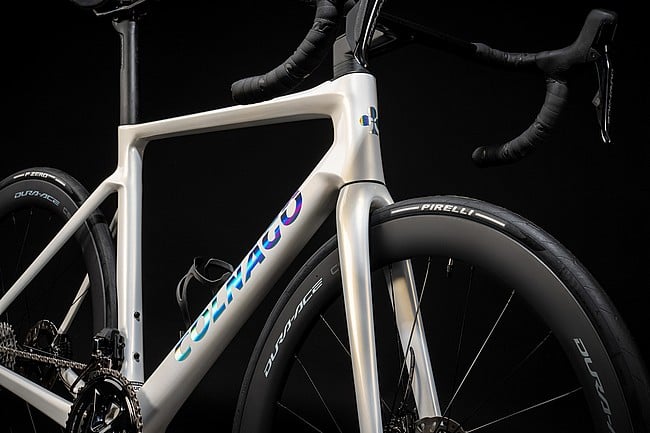

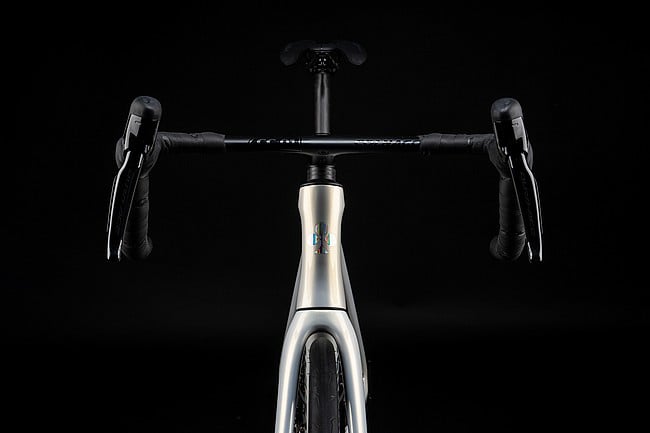

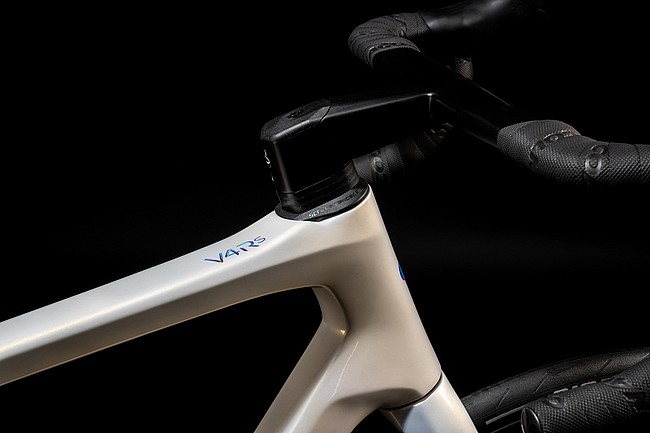

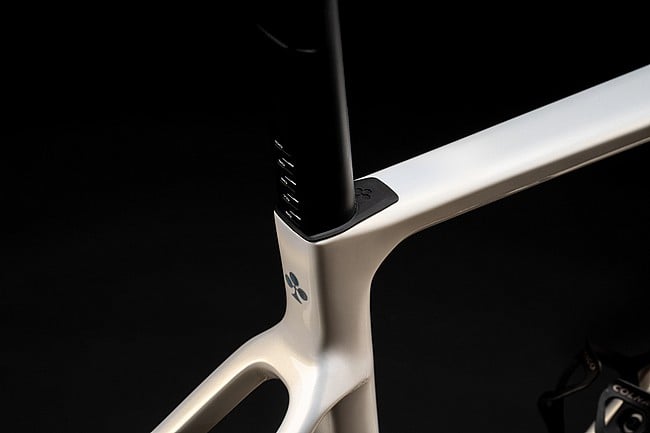

Colnago V4Rs Frameset Indicative of Frame Only
Colnago V4Rs Frameset Indicative of Frame Only

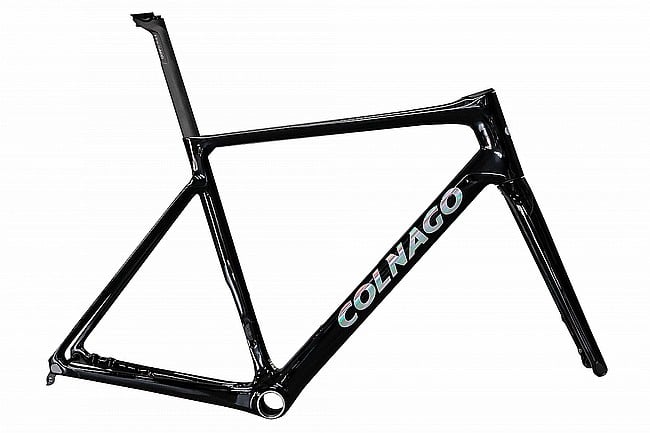

Colnago V4Rs Frameset
Colnago V4Rs Frameset Indicative of Frame Only
Colnago V4Rs Frameset Indicative of Frame Only
Colnago V4Rs Frameset Indicative of Frame Only
Colnago V4Rs Frameset Indicative of Frame Only
Indicative of Frame Only
Click to zoom
Colnago V4Rs Frameset 1
Colnago V4Rs Frameset 2
Colnago V4Rs Frameset 3
Colnago V4Rs Frameset 8
Colnago V4Rs Frameset 4
Colnago V4Rs Frameset 10
Colnago V4Rs Frameset 9

Colnago V4Rs Frameset

Pricing and Order Section

Mfg PartNum:
Earn $220.00 in Podium Club credit. Click to Learn More.
22000
POINTS
$5,500.00
MSRP: $5,500.00
SAVE
Backorder
This color/size is not eligible for Podium Club points
Price matches are is not eligible for Podium Club points
This item is currently not in stock but is available to purchase today as a backorder. It is expected and will be shipped when available.
Qualifies for Free Shipping!


Description

Built to Win

The Colnago V4Rs Frameset has been engineered and built to do just one thing: win. The Colnago V4Rs is the results of years of research and tests in the World Tour with improved stiffness, better aerodynamics, and decreased weight.

A winning bicycle must be stiff, light, aerodynamic, comfortable and robust. The V4Rs is today's best road bike via a mix of all these characteristics.

Stiff, Responsive, Light, Aero, Simple

The V4Rs has unique carbon laminations, designed and tested with particular attention to the areas of the frame most subject to tension. Pedaling power is transmitted to the frame immediately and effectively, more than any other bike in the World Tour. The front area of the bike has been optimized with lines that follow and facilitate airflow. The V4Rs is the bike you want to be on when you are alone, in a breakaway, on your way to victory.

The lightened and revised fork makes the bike much more rideable downhill, in groups and on technical courses. The headset bearings are treated with Ceramic Speed's SLT technology, which virtually cuts out the need for any maintenance during the life of the product

Fitting is made easier since the increase in reach and stack between the different geometries is linear, enabling any rider to find the perfect riding position.

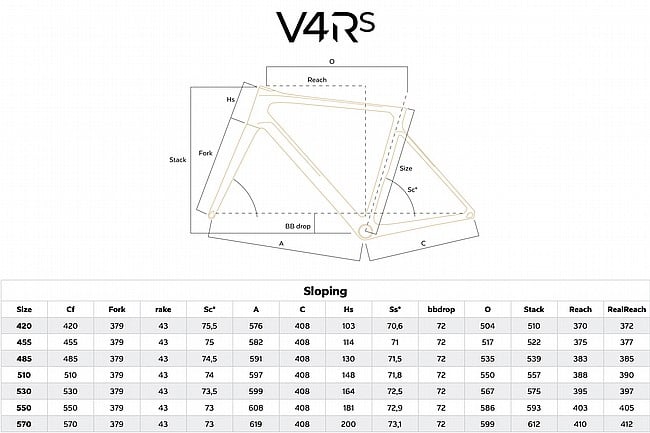

Colnago uses actual seatube length for their size measurement. Please use the geometry chart to determine the correct size. If you have any questions please feel free to contact us and our Customer Service team will be happy to help you determine your proper size.

Features:

  • Frame (material): Colnago V4Rs Monocoque carbon frame
  • Fork (material, section notes): Carbon fork for disc brakes, integrated cables, 1"1/8 section, steerer tube expander plug with hidden tool
  • Headset: ID:35 OD:47 36°/45° CeramicSpeed SLT Treated Bearings
  • Seatpost: Carbon seatpost, 0.15 offset, "D-Shape" section
  • Through axles: Diameter: 12 mm. length 100 mm (front) - 142 mm (rear)
  • Bottom bracket type: T47
  • Maximum tire size: 32mm
  • Weight: Size 485 unpainted frame: 798g
  • Weight limit: This model has an overall maximum limit (combined weight of bicycle, rider and load) of 120 kg

Returns: This product is overweight and/or oversize and does not qualify for our fixed rate return shipping label. If you need to return this item, we can offer a return shipping label at our discounted shipping rates, or you can arrange for your own return shipping.

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.

Specifications

42cm - Black/Chrome

Mfg PartNum: 1KTF.V4S.0TU.420.RVBO

45.5cm - Black/Chrome

Mfg PartNum: 1KTF.V4S.0TU.455.RVBO

48.5cm - Black/Chrome

Mfg PartNum: 1KTF.V4S.0TU.485.RVBO

51cm - Black/Chrome

Mfg PartNum: 1KTF.V4S.0TU.510.RVBO

53cm - Black/Chrome

Mfg PartNum: 1KTF.V4S.0TU.530.RVBO

55cm - Black/Chrome

Mfg PartNum: 1KTF.V4S.0TU.550.RVBO

57cm - Black/Chrome

Mfg PartNum: 1KTF.V4S.0TU.570.RVBO

42cm - White/Chrome

Mfg PartNum: 1KTF.V4S.0TU.420.RVWO

45.5cm - White/Chrome

Mfg PartNum: 1KTF.V4S.0TU.455.RVWO

48.5cm - White/Chrome

Mfg PartNum: 1KTF.V4S.0TU.4.RVWO

51cm - White/Chrome

Mfg PartNum: 1KTF.V4S.0TU.510.RVWO

53cm - White/Chrome

Mfg PartNum: 1KTF.V4S.0TU.530.RVWO

55cm - White/Chrome

Mfg PartNum: 1KTF.V4S.0TU.550.RVWO

57cm - White/Chrome

Mfg PartNum: 1KTF.V4S.0TU.570.RVWO
