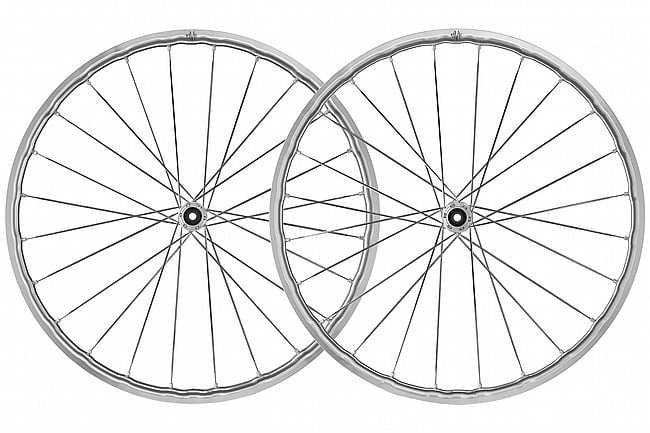

Mavic Ksyrium SL Heritage Alloy Disc Brake Wheelset

Description

An Instant Classic!

The Mavic Ksyrium SL Heritage Disc Brake Wheelset pays homage to their history with premium aluminum rims and hubs that combine the timeless aesthetic of raw metal with modern technologies. The result is a wheelset that strikes a gorgeous silhouette while delivering on performance.

Mavic engineers developed the first aluminum wheels for the 1934 Tour de France and winner Antonin Magne. They've come a long way since then, and now you can enjoy this wheelset, inspired by nearly a century of expertise using the material.

Rims, Hubs, & Spokes

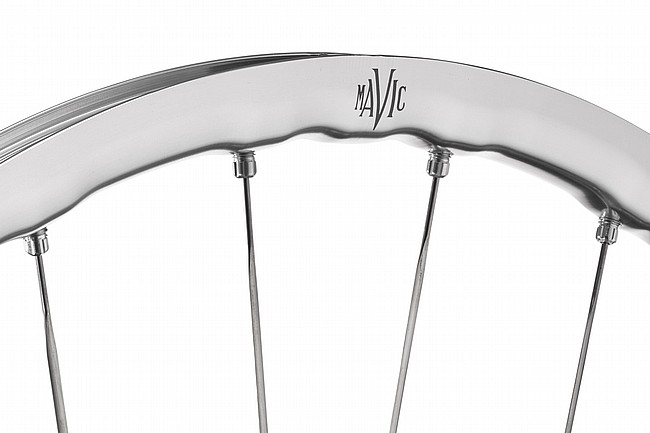

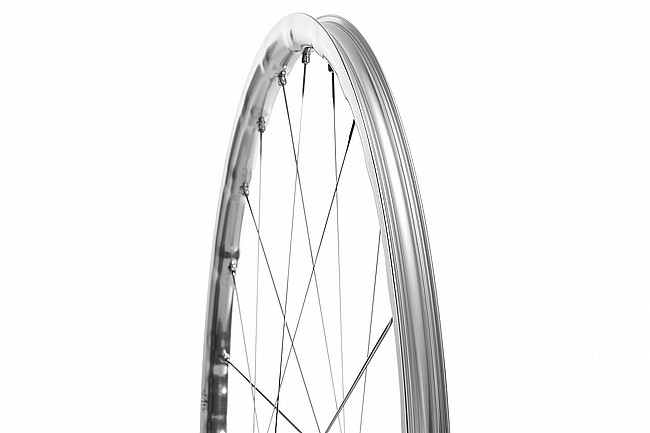

The rim is made from 80% recycled 6351-T56 aluminum, and its profile has been designed to provide high lateral stiffness while ensuring vertical compliance for greater comfort. It also benefits from ISM4D machining to vary the material thickness according to the stresses endured.

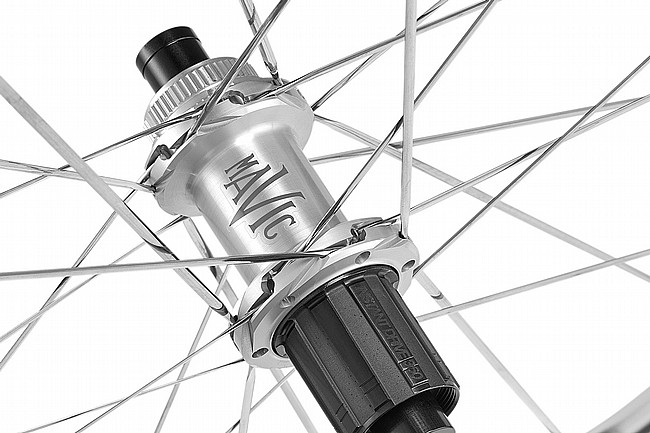

Ksyrium SL Heritage wheels feature Mavic infinity hubs machined from a solid billet to ensure high performance. The freehub body is equipped with Mavic's patented ratchet Instant Drive360 (ID360) technology. The ratchets are extremely durable and any maintenance needs are simple and tool-free.

Mavic's patented aero spokes are designed to minimize air resistance while providing excellent stiffness. The spokes are attached to the rim using FORE technology, a unique Mavic patent, which involves screwing the spoke head directly into the rim. This reinforces the wheel's strength and allows the rim to be 100% airtight without rim tape, greatly improving the tubeless tire installation. Spoke replacement is also made easier since they are all the same length and can be replaced without removing the tire.

Features:

• ISM4D rim weighs only 400g
• Patented lightweight aero spokes and 22mm deep/19mm wide rims keep inertia low and control high
• Solid upper rim bridge eliminates the need for rim tape, saving 60g
• Fore technology keeps the rim upper bridge solid to make the rim stiffer
• New Infinity hub platform: stiff axle, durable bearings and new hub design guarantees wheel stability
• ID360 technology for improved power transfer
• No tubes means less friction, better efficiency and grip, a reduced risk of punctures
• New rim bed shape makes it easier to mount and change tires
• Fore drilling technology doesn't require the use of rim tape

Specs:

• ETRTO size: 622x19TC
• Rim Material: Maxtal Al Alloy
• Rim Depth: 22 mm
• Rim Internal Width: 19 mm
• Joint: SUP welding technology
• Drilling: Fore tapeless tubeless technology (front/rear 24 holes)
• Braking: Centerlock Disc
• Tire: UST Tubeless Ready
• Spoke Material: Steel
• Spoke Shape: Straight, aero, constricted, antirot (front and rear)
• Nipples: Brass, black
• Screw: M6
• Lacing: Crossed 2 (front and rear)
• Hub Material: Aluminum
• Hub Body Design: INFINITY
• Axle size: Front 12x100 / Rear 12x142
• Freehub Type: Instant Drive 360
• Freehub Body: Shimano HG
• Bearing technology: QRM automatic setting - sealed cartridge

FREE Cassette Installation - Order a cassette along with a wheelset and we can install the cassette for free. Cassette installation requires special tools that not all our customers have. The cassette will be professionally installed and torqued to spec. Just add "Please install cassette" to your order notes at checkout and we'll take care of you.

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.
