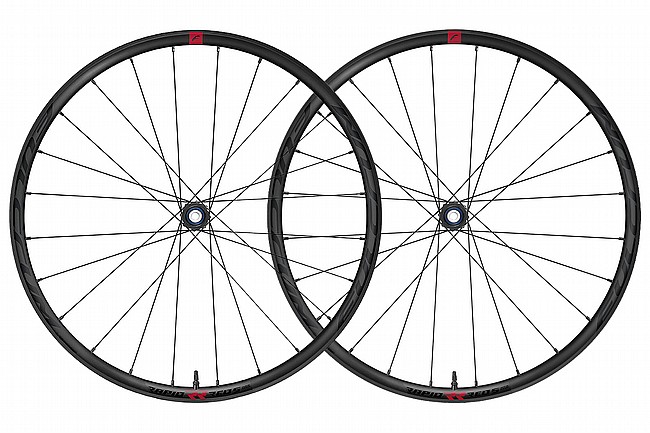

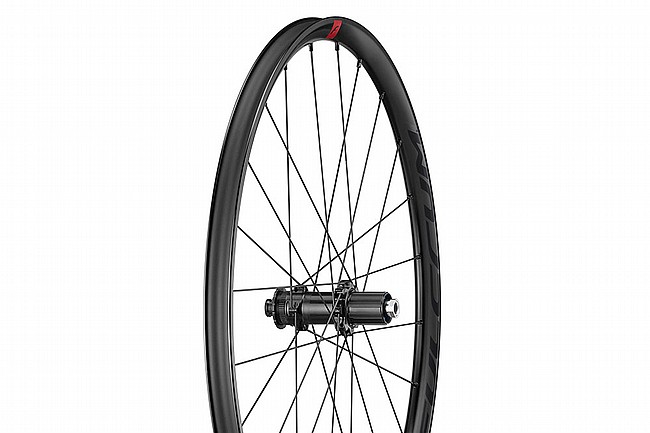

Fulcrum Rapid Red 5 Disc Brake Gravel Wheelset
Fulcrum Rapid Red 5 Disc Brake Gravel Wheelset
Click to zoom
Fulcrum Rapid Red 5 Disc Brake Gravel Wheelset
Fulcrum Rapid Red 5 Disc Brake Gravel Wheelset

Rapid Red 5 Disc Brake Gravel Wheelset

Mfg PartNum:
SALE: $487.52pr
In Stock
Ships Free!
Earn $48.75 in Podium Club credit. Click to Learn More.
This model is not eligible for Podium points
Please Confirm Model
Qualifies for Free Shipping!

Unpaved Tracks, Exciting Journeys, Trails & New Horizons

Bikepacking? Unsupported bike races? Breaking free from the limits of tarmac roads? B-Road or "gravel" bikes are all this and more, and the Fulcrum Rapid Red 5 DB wheel has been designed and developed for this kind of riding.

While developing the Rapid Red 5 DB, Fulcrum's R&D department brought together all the experience and technical expertise gained while creating racing bike wheels, drawing on this to design a model for use on surfaces other than pavement.

Unpaved roads, paths and dirt tracks call for a wider inner channel, 23 mm in this instance, with a low, ultra-resistant 24 mm rim, to cushion blows and deliver superb ride comfort, regardless of the stresses to which it's exposed.

The profile of the wheel enables tubeless ready tires between 30 and 46 mm with an extensive range of set-ups that can be adjusted to the type of tracks being ridden. The 24 straight-head spokes are supported by a solid aluminum hub, ideal for tackling rough terrain and for taking the slightly higher weights of a bike ready to go on a journey.


  • 2-Way fit Ready (for clincher and tubeless)
  • Tire width: 30 to 46 mm
  • Centerlock Disc brake
  • Weight: 1760 g
  • Rim material: Aluminum
  • Rim height: 24 mm
  • Rim width (outer): 28 mm
  • Rim width (inner): 23 m
  • Front Axle: 12 x 100
  • Rear Axle: 12 x 142
  • 24 rounded, straight pull, stainless steel spokes
  • Sealed cartridge bearings
  • HG or XDR hub

FREE Cassette Installation - Order a cassette along with a wheelset and we can install the cassette for free. Cassette installation requires special tools that not all our customers have. The cassette will be professionally installed and torqued to spec. Just add "Please install cassette" to your order notes at checkout and we'll take care of you.

B-Stock - This product has one or more B-Stock units available. These units can be purchased at a discount (see option select). B-Stock units were returned from other customers and may have missing or damaged packaging materials. These units are otherwise as new. The full manufacturer warranty applies. Click Here for more information.


Rim Material: Aluminum


Wheel Size: 700c


Wheel Weight: 1760 g


Tire Type: Tubeless-ready Clincher


Tire Size Range: 30-46 mm


Spoke Count: 24 front and rear


Spoke Material: Stainless Steel


Spoke Head Type: Straight Pull


Brake Type: Centerlock disc


Rim Depth: 24 mm


Internal Rim Width: 23 mm


External Rim Width: 28 mm


Front Hub Spacing: 12x100 mm


Rear Hub Spacing: 12x142mm

Shimano HG 11sp - 12x100/12x142, Centerlock

Mfg PartNum: RR5-20DFR22AS

Sram XDR - 12x100/12x142, Centerlock

Mfg PartNum: RR5-20DFR22AX
